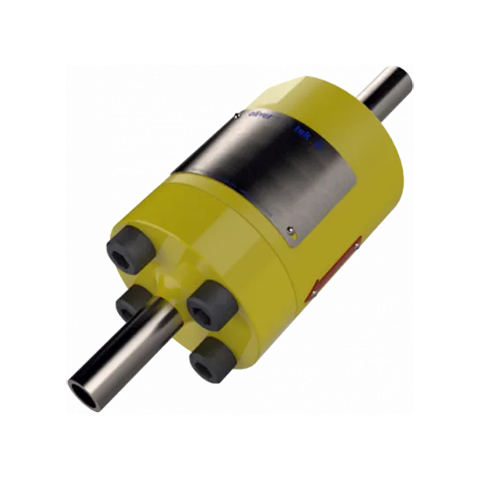

1" Subsea Check Valve

Subsea Check Valve 1″

The 1″ nominal bore check valve has an operating pressure rating up to are up to 15,000psi [1034bar] with an operating temperature range of -20F[-29C] to +350F[+177C].
The small-bore subsea check valves are qualified at different pressure ratings up to 15,000 psi [1038bar] and are suitable for water depths to 10,000ft [3050m].
We qualify our range of check valves to the exacting standards of API 6A Appendix F PR2 and 17D 2nd Ed, all supported by Third Party Independent review and endorsement.

Specifications

Bore Sizes: 1.00″ [25mm]
Materials: Available in API Material Classes FF and HH to NACE MR-01-75 latest revision.
Operating Temperature: -20F/-29C to +350F/177C

Pressure Rating: 15,000 PSI [1034 Bar]

Product Overview

Product features

Poppet Seal – The poppet seal for the 0.75″ and 1″ design, the seal is a fully encapsulated Peek labyrinth ring and a range of springs have been designed to provide different cracking pressures and can be provided in a range of materials such as 316SS, X750 and Elgiloy.

Flow tested – Check Valves are Flow tested for accurate pressure loss data.

Versitile design – Design ideally suited to be incorporated with gate or needle valves for chemical injection applications or as a stand alone assembly for in line installation locations.
Installation disassembly options – Our Stand alone Check valves can be supplied fully factory tested and available for poppet removal during installation and commisionsing process. This reduces the risk of accidental damage to the check sealing.

Combination Check Valves – The check valves have been designed to be incorporated in a range of different body configurations. For example, integral within a gate valve for a chemical injection application; or as a twin check valve for a hydraulic control system.

Traceability of Materials – All the components within an Oliver subsea check valve have material traceability. The complete check valves are individually serialised and are provided with material and pressure test certificates to BS EN 10204 3.1 certifications. Optional EN 10204 with the intent of a 3.2 type certification option is also readily available (EN 10204 3.2 true mill witnessed shall be assessed for availability upon request). The Oliver Valvetek 3/8″ Check Valve is ideally suited for hydraulic control operations.

Engineered for Extreme Depths

Subsea valves built to operate efficiently at extreme depths, ensuring reliability in deep-water conditions.

Corrosion-Resistant Materials

Manufactured using materials resistant to corrosion, ensuring long-term durability in underwater environments.

High-Pressure and High-Temperature

Designed to withstand the harshest subsea conditions, providing secure control and isolation under high pressures.
