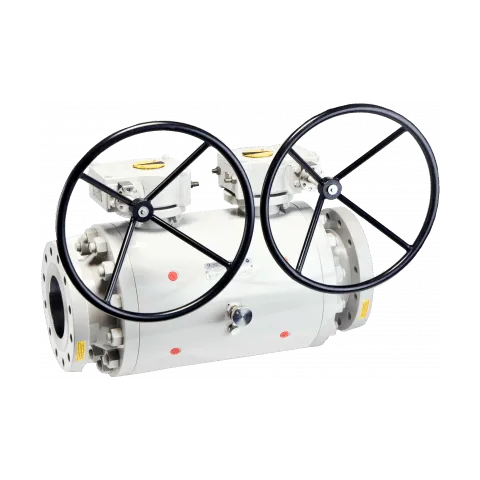

Trunnion Ball Valve DBB Flanged 3 Piece Design
Our Flanged Style Double Block & Bleed Valves are designed with a bolted 3 piece body and conventional through bolting flanged connections. The design reduces potential leak paths and allows weight and space savings when compared to conventional piping methods. Available in both full and reduced bore sizes.
Product Overview
The 3 piece bolted construction provides conventional through bolting of the flanged end connections, plus the option of hub or welded ends. The overall lengths of the valve are kept to a minimum and offer considerable cost, weight and space savings over conventional piping methods of double block and bleed, using separate ball valves and spool pieces.
Valves are available with full bore sizes in accordance with API 6D, ensuring maximum flow for increased production rates and allowing pigging of the pipe line.
The integral trunnion plate design reduces leak paths through the body.
Various bleed valve options and connections are available in line with customer requirements
Available up to 16″ full bore (larger sizes on request).
Trunnion mounted design from 2″ to 16″.
Flanged connections in accordance with ASME B16.5 or API 6A, hub connectors or welded ends also available.
Integral vent valve with both threaded and flanged connections available.
Reliable Isolation and Safety
Double Block and Bleed Valves offer true isolation, ensuring maximum safety by preventing leakage between isolated sections.
Compact and Efficient Design
These valves provide a space-saving solution, integrating two independent ball valves into one compact body for easy installation.
Built for Harsh Environments
Engineered for high-pressure applications, our DBB valves are designed to perform reliably under extreme conditions, reducing maintenance needs.
