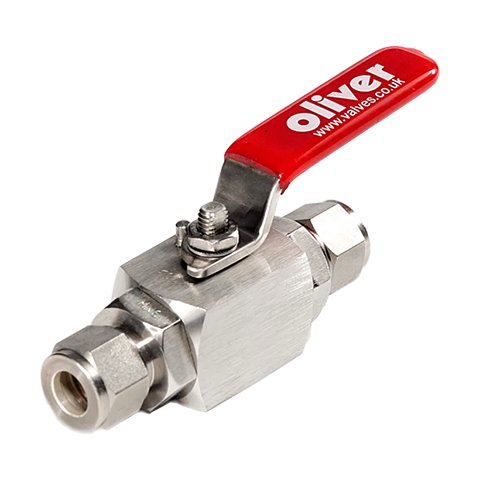

B6BI Ball Valve
The 'B6' Type Single Isolating Ball Valve is designed for safe and reliable isolation giving bubble tight shut off. Totally enclosed soft seats offer both positive sealing and low operating torques.
Specifications
Bore: N/A
Connection Size: ¼" and ½"
Handle: Lever
Packing: PTFE
PSI Ratings: 150 PSI
Temperature: 120 Deg C
Thread Form: NPT ONLY
Product Overview
The 'B6' Type Single Isolating Ball Valve is designed for safe and reliable isolation giving bubble tight shut off. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high-pressure service. Included in the design of the B6BI Ball valve is an anti-blow out spindle, which is fitted as standard with the option of PTFE or Grafoil seals.
Our High-Pressure Ball Valves are offered in three different configurations: Integral Compression Ends, Threaded Ends, Female x Female, and Threaded End Male x Female.
As with our low-pressure ball valves, our High-Pressure Ball Valves offer totally enclosed soft seating, which gives the valve a positive sealing and low operating torques across the whole pressure range.
However, unlike our low-pressure ball valves, our High-Pressure Ball Valves are capable of withstanding PSI ratings up to 10,000 PSI. They are recommended for use in the Oil, Gas and Petrochemical industries.
Our High-Pressure Ball Valves maintain seal integrity throughout the pressure ranges with a one-piece spindle with an anti-blow shoulder. We can also work with customers to provide High-Pressure Ball Valves with increased body integrity through either PTFE or Graphite Foil spindle and body seals.
The handle found on our High-Pressure Ball Valves is manufactured using 316 stainless steel, fitting with twin anti-vibration locknuts.
3D Models are available upon request
Available as Firesafe to BS6755 Pt2
NACE MR-01-75
