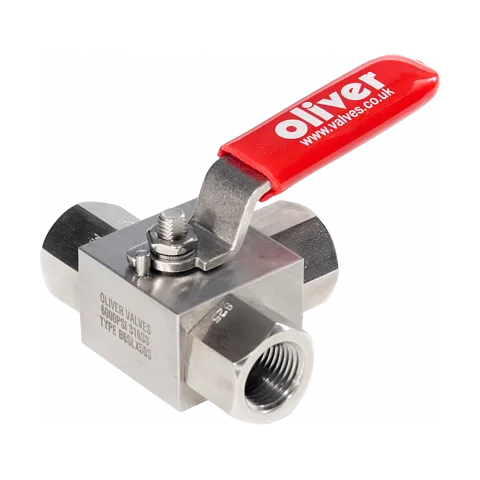

B6SLX50 Diversion Valve
The 'B6SL' Type 3 way Flow Diverting Ball Valve is designed for safely diverting flow to one of the two outlet ports. Totally enclosed soft seats offer both positive sealing and low operating torques.
Specifications
Bore: 10mm Only
Connection Size: From 1/4″ to 1/2″
Handle: Lever
Packing:: PTFE
PSI Ratings: 6,000 / 10,000 PSI
Temperature: 120 Deg C
Thread Form: NPT (As Standard) / BSPP / BSPT other on request
Product Overview
The 'B6SL' Type 3 way Flow Diverting Ball Valve is designed for safely diverting flow to one of the two outlet ports. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high-pressure service. Within the design of the B6SLX50 Diversion Valve is an anti-blow out spindle is fitted as standard with the PTFE spindle and body seals.
High-Pressure Ball Valves from Oliver Valves are offered in three different configurations, namely: Integral Compression Ends, Threaded Ends Female x Female and Threaded Ends Male x Female.
As with our low-pressure ball valves, our High-Pressure Ball Valves offer totally enclosed soft seating, which gives the valve a positive sealing, and low operating torques across the whole pressure range.
Our High-Pressure Ball Valves can withstand PSI ratings up to 10,000 PSI compared to our low-pressure ball valves, the high-pressure versions are recommended for use in the Oil, Gas and Petrochemical industries.
With a one-piece spindle with an anti-blow shoulder, our High-Pressure Ball Valves maintain seal integrity throughout the pressure ranges. We are also able to work with customers to provide High-Pressure Ball Valves with increased body integrity through either PTFE or Graphite Foil spindle and body seals.
The handle found on our High-Pressure Ball Valves is manufactured using 316 stainless steel, fitting with twin anti-vibration locknuts.
3D Models are available upon request.
