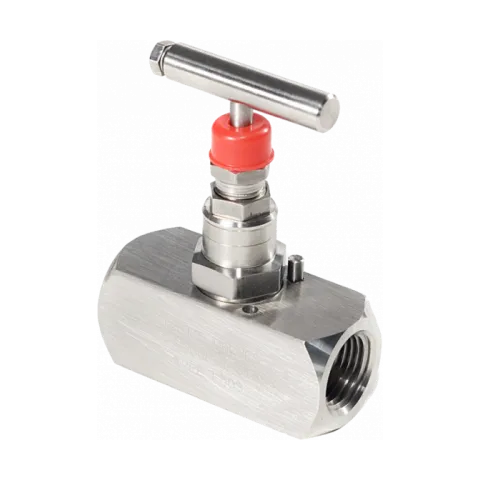

Female F Type Needle Valve

Female  F  Type Needle Valve

The  F Type Single Isolating Needle Valve is designed for safe and reliable isolation. It provides a bubble-tight shutoff, a non-rotating and anti-galling tip, and a dynamic self-adjusting spindle seal to ensure a long service life in various applications.

Specifications

Bore: 0.21″ (5.4mm)
Connection Size: From 1/4″ to 1/2″
CV: 0.46
Handle: 'T' Bar
Packing: PTFE/Graphite
PSI Ratings: From 6,000 PSI to 10,000 PSI
Seats: Metal to Metal
Temperature: 240 Deg C / 540 Deg C
Thread Form: NPT (As Standard) BSPP & BSPT

Product Overview

Our most common type of valve, the F50 or  F Type  Single Isolating Needle Valve, is designed for safe and reliable isolation. It provides a bubble-tight shutoff, a non-rotating and anti-galling tip, and a dynamic self-adjusting spindle seal to ensure a long service life in various applications.

Oliver Valves' needle valves offer metal-to-metal seating and provide a small-bore isolation valve for various applications, eliminating the need for larger and more expensive globe valves.

The Female F-Type Needle Valve is supplied as standard with a non-rotating tip, allowing for linear closure while eliminating galling.

Oliver Valves' Female F Type Needle Valve is rated at 413 bar (6,000 psi) but can also be rated at 689 bar (10,000 psi). Standard Temperature range: 240 °C to 540 °C.

All NPT connection threads are Single Point CNC machined.

All Oliver products have material traceability and pressure test certificates in accordance with BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.

The tips are 'interchangeable' without the need for special tools or spindle changes in options of hard, soft, and metering tips.

Safety ‘spindles are ‘back seating’ and ‘anti-blowout’ as standard, a major safety feature. Also, ‘an anti-removable’ steel pin is fitted into the body so that the head unit cannot be removed inadvertently.

The dust cap protects the spindle threads from the ingress of dirt and is colour-coded for a specific service.

With a rich history of establishing cutting-edge flow control technologies, our team offers a diverse range of needle valves for the global Oil, Gas, and Petrochemical industries.

For more information about our needle valves, please contact Oliver Valves today.

High-Precision Isolation

Engineered for precise, small-bore isolation in high-pressure systems, ensuring minimal leakage.

Durable and Reliable Design

Metal-to-metal seating and anti-galling features for long-lasting, secure performance under extreme conditions.

Safe and Efficient Operation

Standard safety features include back seating spindles and anti-blowout, ensuring maximum operational safety.
