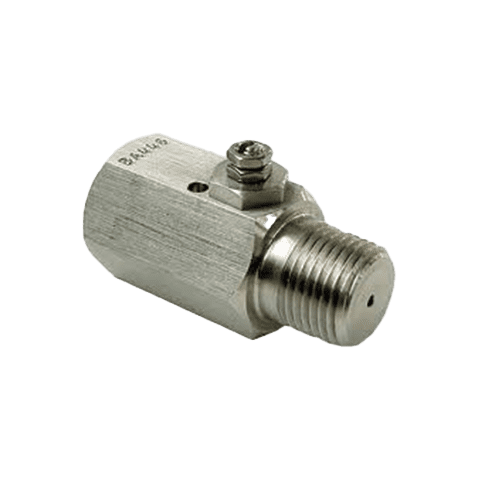

Gauge Snubber

Gauge Snubber

A 6,000 psi Gauge Snubber protects gauges from line surges by damping variations down via a variable orifice.

Made from 316 stainless steel with 1/2″ NPT male x female connection, and we have other materials and connection sizes are available upon request.

Specifications

Bore: 2.5MM

Connection Size: 1/2″ NPT Male x Female (SN50S)

Packing:: Viton

PSI Ratings: 6,000 PSI

Temperature: 120 C

Thread Form: NPT

Product Overview

A 6,000 psi Gauge Snubber protects gauges from line surges by damping variations down via a variable orifice. Made from 316 stainless steel with 1/2″ NPT male x female connection, at Oliver Valves, we have other materials and connection sizes are available upon request.

The Gauge Snubber is a device that is designed to moderate “damp down” pulsation peeks and allows a lower cost measuring instrument to be used in place of glycerine filled alternatives. The Snubber features a variable orifice by means of an adjustable, anti-blow out stem, allowing an optimum area setting depending on media flow and pressure.

The standard gauge snubber is rated to 413bar (6,000psi) and is available in a range of different materials and end connector sizes.

3D Models are available upon request.

Advantages of using our Gauge Snubber:

Only one spindle is needed for all processes.

The snubbing rate can be altered after installation on site.

Anti-blowout spindle.

In an emergency situation, it can be shut off.

Protects gauges from line surges by damping variations down via a variable orifice.
