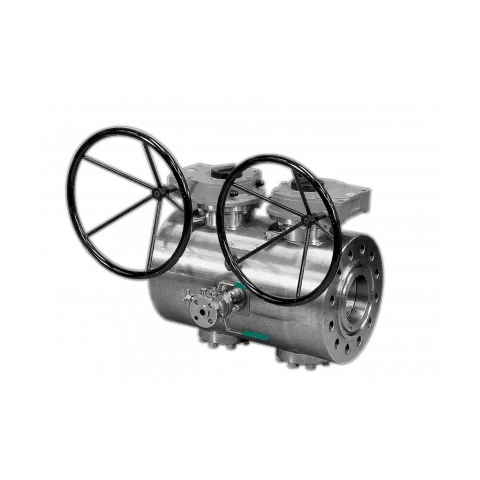

Hydrogen Pipeline Valves

Hydcovalves hydrogen pipeline valves are designed on 20 years of pipeline ball valve qualifications and field service experience. Available in Single Isolate, Block & Bleed or Double Block and Bleed configurations in sizes up to 18″ Full and Reduced, offered in both manual and actuated quarter-turn operation.

Zero through seat leakage valves are available in both metal and soft sealing configurations.

Specifications

Construction – Single Isolate & Double block & bleed
Type – Trunnion & Floating Balls
Size – 1″ to 20″ Full & Reduced Bore
Ratings – ASME Flanged 150lb To 2500lb, API 5 & 10K
Temp range – 100 To + 350 Deg C
Materials – Cast & Forged
Seats: – Metal & Soft
Available with B16.10 Standard length
–Standards– ASME B16.5, ANSI B16.34, API6D, API598, BS6755 PT2, API 6A, API 607, ISO15848-1&2, ATEX

Product Overview

Coupled with Oliver Twinsafe’s decades of Oil & Gas valve know how & Hydcovalves class-leading research and development facility, we are able to offer standard & engineered-to-order solutions, available with reliability and innovation guaranteed to support the net zero emissions targets of our industrial users.

If you would like more information regarding the production of Hydrogen Pipeline Valves, please contact Oliver Hydcovalves today!

Optimised for Hydrogen Systems

Valves specifically designed for hydrogen applications, ensuring safety and efficiency in decarbonisation processes.

Support for Carbon Capture

Advanced valve solutions for carbon capture, providing secure isolation and performance under high pressure.

Future-Focused Design

Built with decarbonisation in mind, supporting the transition to cleaner, sustainable energy systems.
