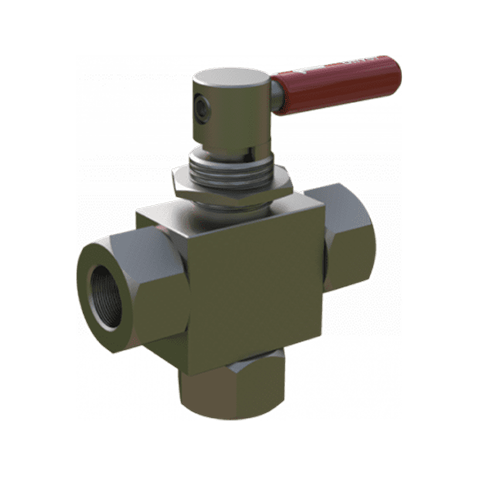

Selector Ball Valve
The valve is designed as a selector ball valve, allowing the choice of flow from either one of the two side ports, and out through a single bottom port. Due to the nature of the design valve it can also be used as a bottom entry diverter valve, with flow from the single bottom port and out from either one of the two side ports.
Specifications
Bore: 4mm Only
Connection Size: From 1/4″ to 1/2″
Handle: Lever
Packing:: N/A
PSI Ratings: 6,000 / 10,000 PSI
Temperature: 121 Deg C
Thread Form: NPT
Product Overview
The valve is designed as a selector ball valve, allowing the choice of flow from either one of the two side ports, and out through a single bottom port. Due to the nature of the design valve it can also be used as a bottom entry diverter valve, with flow from the single bottom port and out from either one of the two side ports. Anti-blow out spindle is fitted as standard with the PTFE or PEEK spindle and body seals. The Selector Ball Valve from Oliver Valves comes manufactured in 4mm Bore only.
Features of the Selector Ball Valve.
Totally enclosed soft seats giving positive sealing and low torque operation across the pressure range
One-piece spindle with an anti-blowout shoulder that maintains seal integrity at all pressures
Precision-machined ball for smooth operation through 180 degrees with 4mm bore
PTFE spindle and body seals to give high body integrity
316 stainless steel one-piece handle fitted with twin anti-vibration locknuts
