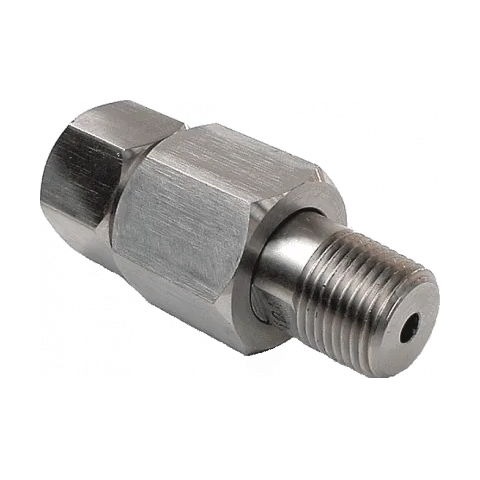

Swivel Gauge Adapter
A 10,000 psi Swivel Gauge Adapter that allows the 360deg orientation of gauges on site. Made from 316 stainless steel with 1/2″ NPT male x female connection.
Specifications
Connection Size: 1/2″ NPT Male x Female
PSI Ratings: Up to 10,000PSI
Temperature: 540 C
Thread Form: NPT (AS STANDARD) / BSPP / BSPT other on request
Product Overview
A 10,000 psi Swivel Gauge Adapter that allows the 360deg orientation of gauges on site. Made from 316 stainless steel with 1/2″ NPT male x female connection. Other materials and connection sizes are available upon request.
Oliver Valves gauge adaptor is a simple device with a male thread on the process side and a female thread on the gauge side, allowing it to position in an orientation suitable for easy viewing.
The standard gauge adaptor is rated at 413bar (6,000psi) but can be rated at 689bar (10,000psi) and is available in a range of different materials.
3D Models are available upon request.
