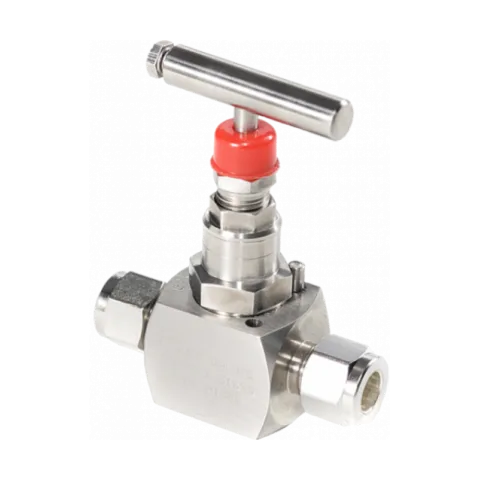

Compression 'BI' Type Needle Valve
The 'BI' Type Single Isolating Needle Valve is designed for safe and reliable isolation. It provides a bubble-tight shutoff, a non-rotating and anti-galling tip, and a dynamic self-adjusting spindle seal to ensure a long service life in various applications.
Oliver Valves' needle valves offer metal-to-metal seating and provide a small-bore isolation valve for various applications, eliminating the need for larger and more expensive globe valves.
Specifications
Bore: 0.21″ (5.4mm)
Connection: Size From 1/4″ to 1.”
CV: 0.46
Handle: ‘T’ Bar
Packing: PTFE/Graphite
PSI Ratings: From 6,000 PSI to 10,000 PSI
Seats: Metal to Metal
Temperature: 240 Deg C / 540 Deg C
Compression Fitting connection
Product Overview
The 'BI' Type Single Isolating Needle Valve is designed for safe and reliable isolation. It provides a bubble-tight shutoff, a non-rotating and anti-galling tip, and a dynamic self-adjusting spindle seal to ensure a long service life in various applications.
Oliver Valves' needle valves offer metal-to-metal seating and provide a small-bore isolation valve for various applications, eliminating the need for larger and more expensive globe valves.
The Compression 'BI' Type Needle Valve is supplied as standard with a non-rotating tip, allowing for linear closure while eliminating galling.
Oliver Valves’ standard needle valves are rated at 413 bar (6,000 psi) but can be rated at 689 bar (10,000 psi). Standard Temperature range: 240 °C to 540 °C.
All NPT connection threads are Single Point CNC machined.
All Oliver products have material traceability and pressure test certificates in accordance with BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates, ensuring traceability throughout their application usage.
Needle valve tips can be 'interchangeable' without special tools or spindle changes in options of hard, soft, and metering tips.
Safety spindles are anti-blowout as standard, a significant safety feature. Additionally, an anti-removable steel pin is fitted into the body, preventing the head unit from being removed inadvertently.
The dust cap included with the Compression ‘BI’ Type Needle Valve protects the spindle threads from the ingress of dirt and is color-coded for specific services.
Refer to the datasheet for full details
