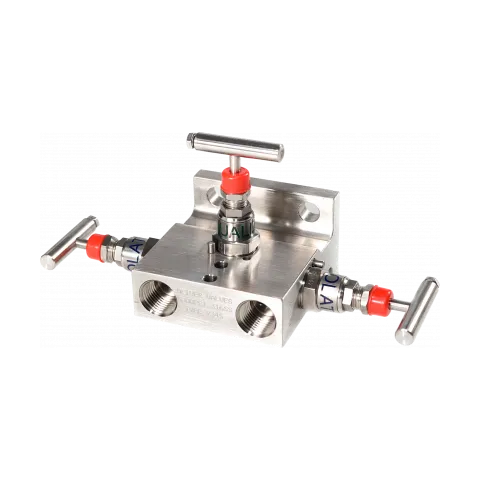

T34 Needle Valve Manifold
The 'T34' Type 3 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration
Specifications
Bore: 0.21″ (5.4mm)
Connection Size: ¼" through to ½"
Handle: 'T' Bar
Packing: PTFE / Graphite
PSI Ratings: 6,000 / 10,000 PSI
Temperature: 240 Deg C / 540 Deg C
Flanged connections
Product Overview
The 'T34' Type 3 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration. Each needle valve head is designed for safe and reliable isolation, giving bubble-tight shutoff, with non-rotating, anti-galling tips and dynamic self-adjusting spindle seal to provide a long service life in a variety of service conditions.
Valves T34, Threaded x Flange, type 3-valve manifold is designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising'valve for simple calibration.
The T34 type 3-valve manifold is supplied as standard with a non-rotating tip to allow linear closure while eliminating galling.
Our Valves' standard T34 type 3-valve manifold valves are rated to 413bar (6,000psi). Standard Temperature range from 240 Deg C up to 540 Deg C.
All NPT connection threads are Single Point CNC machined.
All our products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.
Tips are ‘interchangeable’ without special tools or spindle changes in options of hard, soft and metering tips.
Safety spindles are ‘back seating’ and ‘anti-blowout’ as standard, a major safety feature. The spindles are ‘back seating’ and ‘anti-blowout’, which becomes a major safety feature. Our design ensures that an ‘anti-removable’ steel pin is fitted into the body so that the head unit cannot be removed inadvertently.
Dust cap protects spindle threads from ingress of dirt and is colour coded for particular service. At Oliver Valves, all threads are rolled and lubricated within our needle valve manifold to eliminate galling.
Refer to the datasheet for full details.
