Y35 Needle Valve Manifold

Y35 Needle Valve Manifold

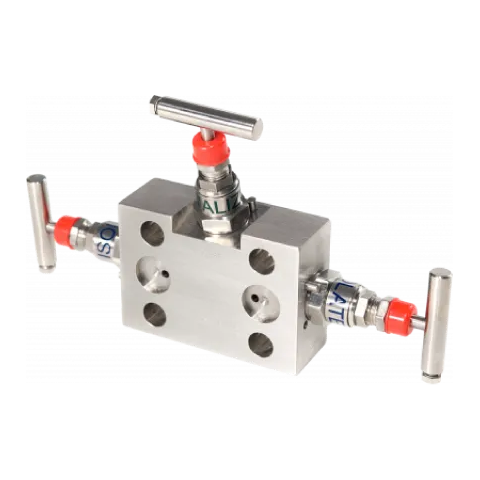

The 'Y35' Type 3 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration.

Specifications

Bore: 0.21″ (5.4mm)
Connection Size: ¼" through to ½"
Handle: 'T' Bar
Packing: PTFE / Graphite
PSI Ratings: 6,000 / 10,000 PSI
Temperature: 240 Deg C / 540 Deg C
Thread Form: NPT (As Standard), BSPP & BSPT

Product Overview

The 'Y35' Type 3 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration. Each needle valve head is designed for safe and reliable isolation, giving bubble-tight shutoff, with non-rotating, anti-galling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.

The Valves Y35, Flange x Flange, type 3-valve manifold is designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration.

The Y35 type 3-valve manifold is supplied as standard with a non-rotating tip to allow linear closure while eliminating galling.

Our standard Y35 type 3-valve manifold valves are rated to 413bar (6,000psi) but can be rated at 689bar (10,000psi). The standard Temperature range of the manifold is from 240 Deg C up to 540 Deg C.

All NPT connection threads are Single Point CNC machined.

All  products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.

Tips are ‘interchangeable’ without special tools or spindle changes in options of hard, soft and metering tips.

Safety spindles are ‘back seating’ and ‘anti-blowout’ as standard, a major safety feature. Also, an ‘anti-removable’ steel pin has been fitted to the manifold body so the head unit cannot be removed inadvertently.

The dust cap included protects spindle threads from ingress of dirt; this can is also colour coded with an indication of which particular service it can be used on.
