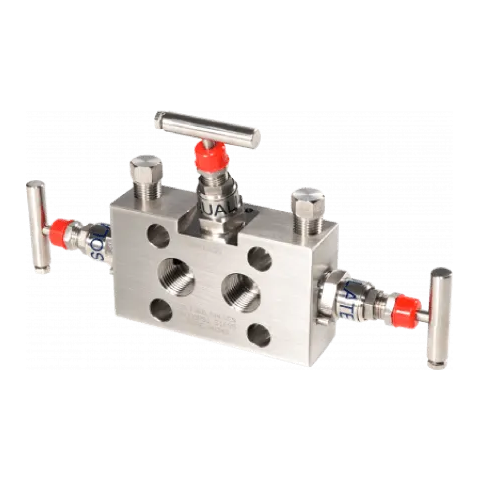

YV34 Needle Valve Manifold
The 'Y34' Type 3 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration.
Specifications
Bore: 0.21″ (5.4mm)
Connection Size: ¼" through to ½"
Handle: 'T' Bar
Packing: PTFE / Graphite
PSI Ratings: 6,000 / 10,000 PSI
Temperature: 240 Deg C / 540 Deg C
Thread Form: NPT (As Standard), BSPP & BSPT
Product Overview
The YV34 type 3-valve manifold is standard with a non-rotating tip to allow linear closure while eliminating galling.
Our standard YV34 type 3-valve manifold valves are rated 413bar (6,000psi) but can be rated at 689bar (10,000psi). Standard Temperature range from 240 Deg C up to 540 Deg C.
All NPT connection threads are Single Point CNC machined.
All our products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.
Tips are ‘interchangeable’ without special tools or spindle changes in options of hard, soft and metering tips.
Safety spindles are ‘back seating’ and ‘anti-blowout’ as standard, a major safety feature that we have included within the design. Also, an ‘anti-removable’ steel pin is fitted into the manifold body to prevent the head unit from being removed inadvertently.
Included is a dust cap that protects the lubricated spindle threads from ingress of dirt and is colour coded for particular services.
Compact Flow Distribution
Space-saving manifold designs for efficient flow management in complex piping systems.
Customisable Configurations
Tailored manifold solutions for varied applications, ensuring optimal performance across diverse industries.
Durability in Harsh Conditions
Built to withstand high-pressure, high-temperature environments for dependable, long-term use.
